Customized FOTON 4*2 LHD diesel refrigerated truck for Burkina Faso
Two units of FOTON 4*2 LHD diesel refrigerated trucks customized for Burkina Faso are finished.

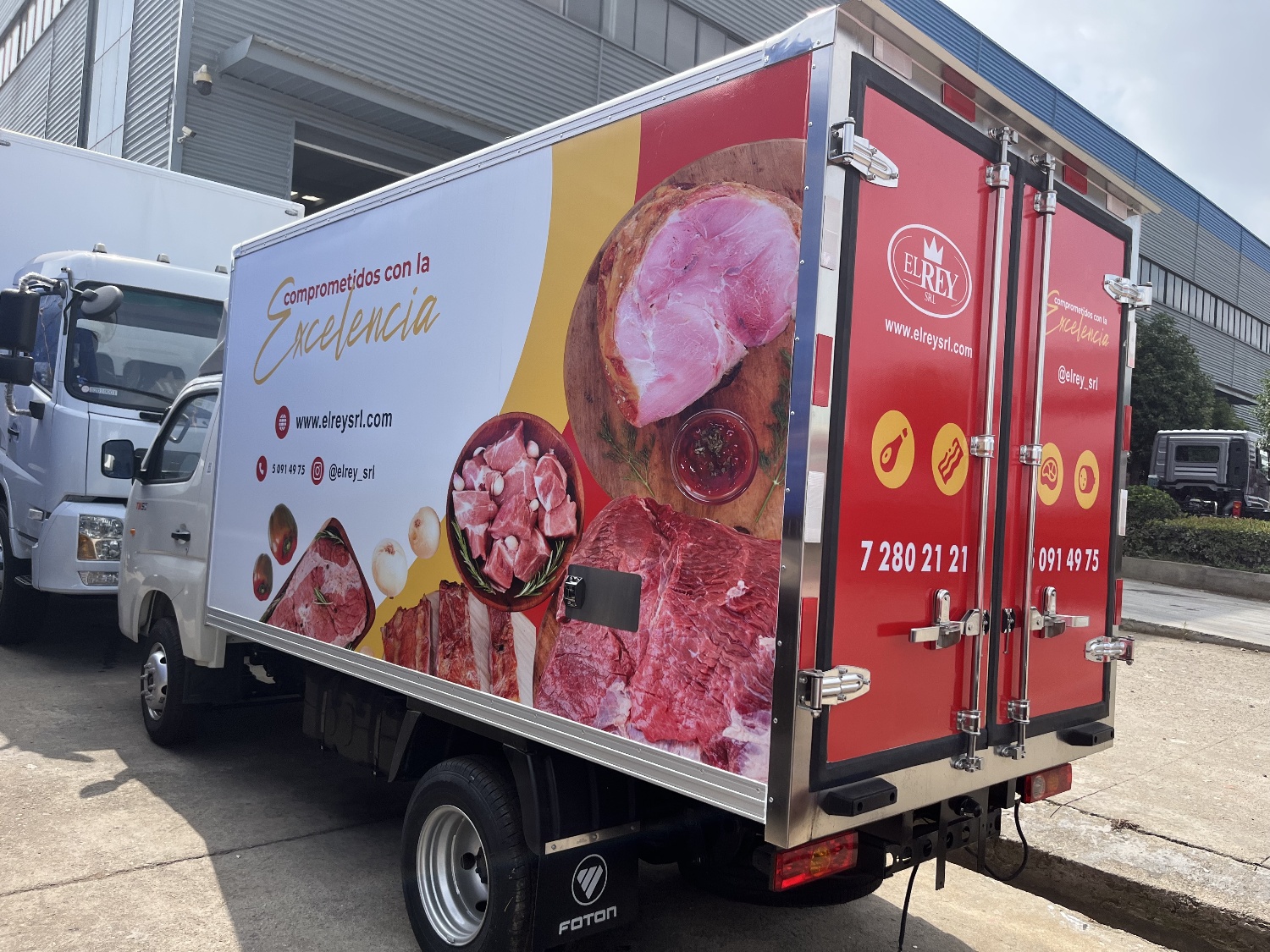

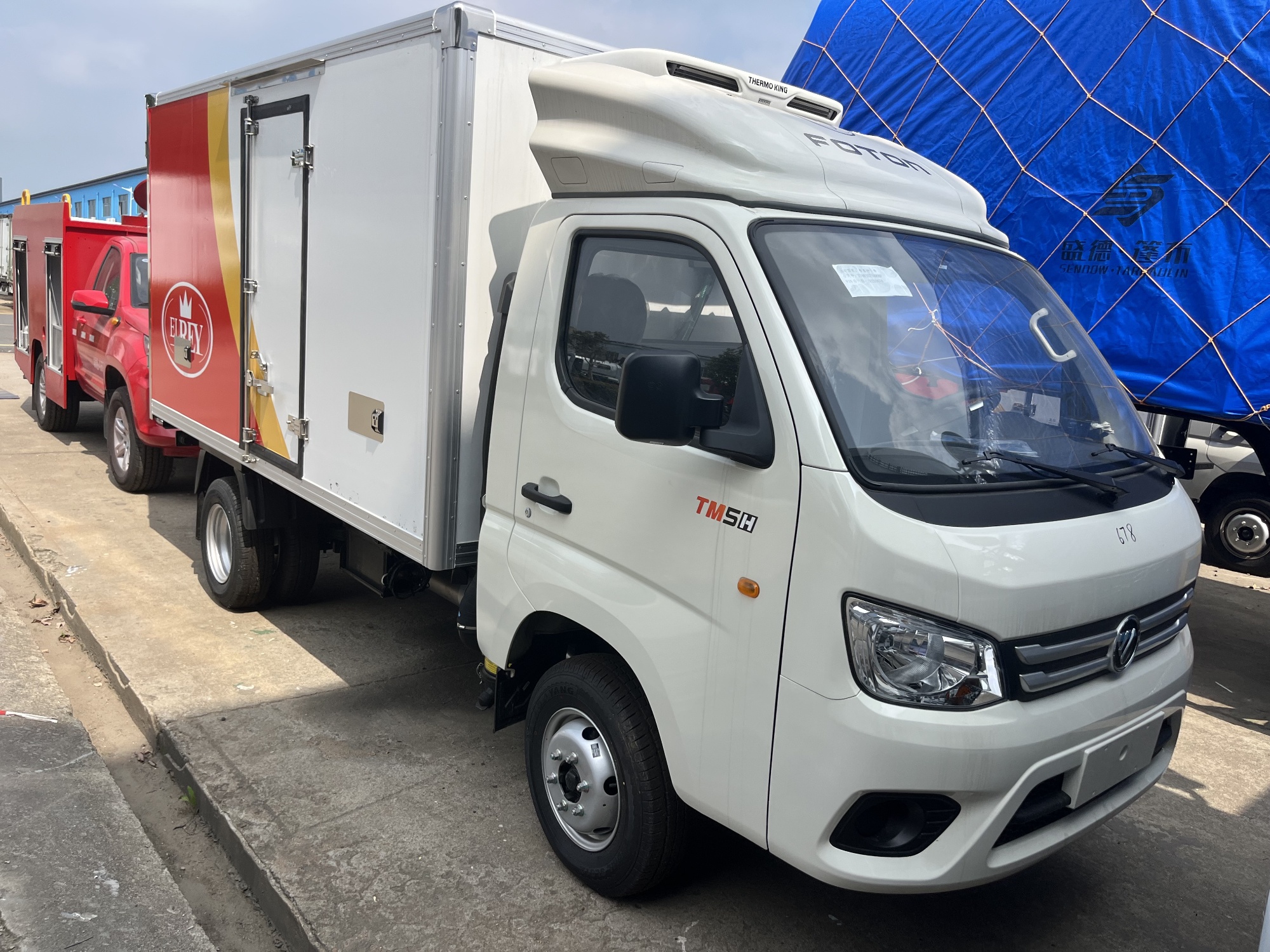

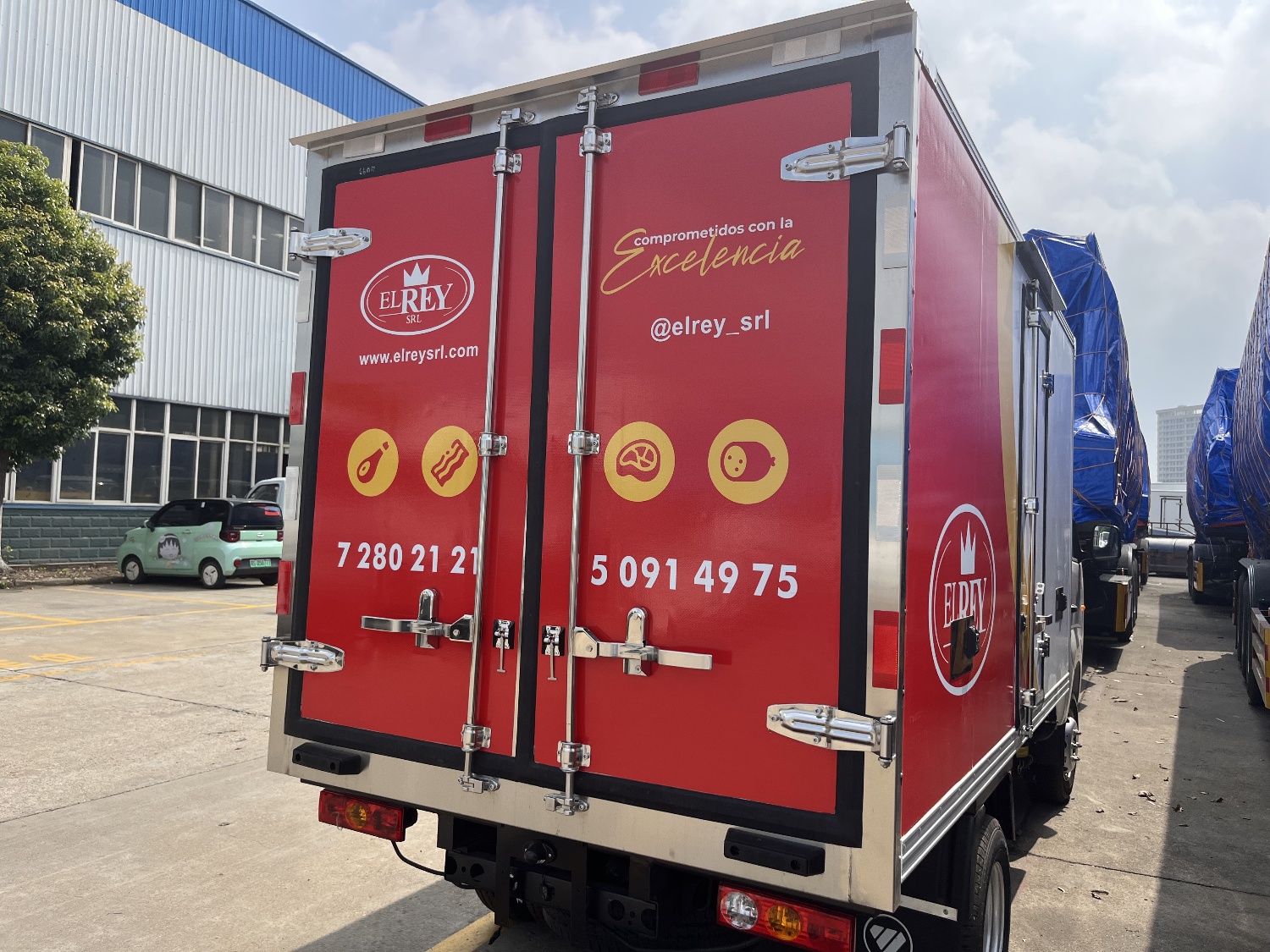

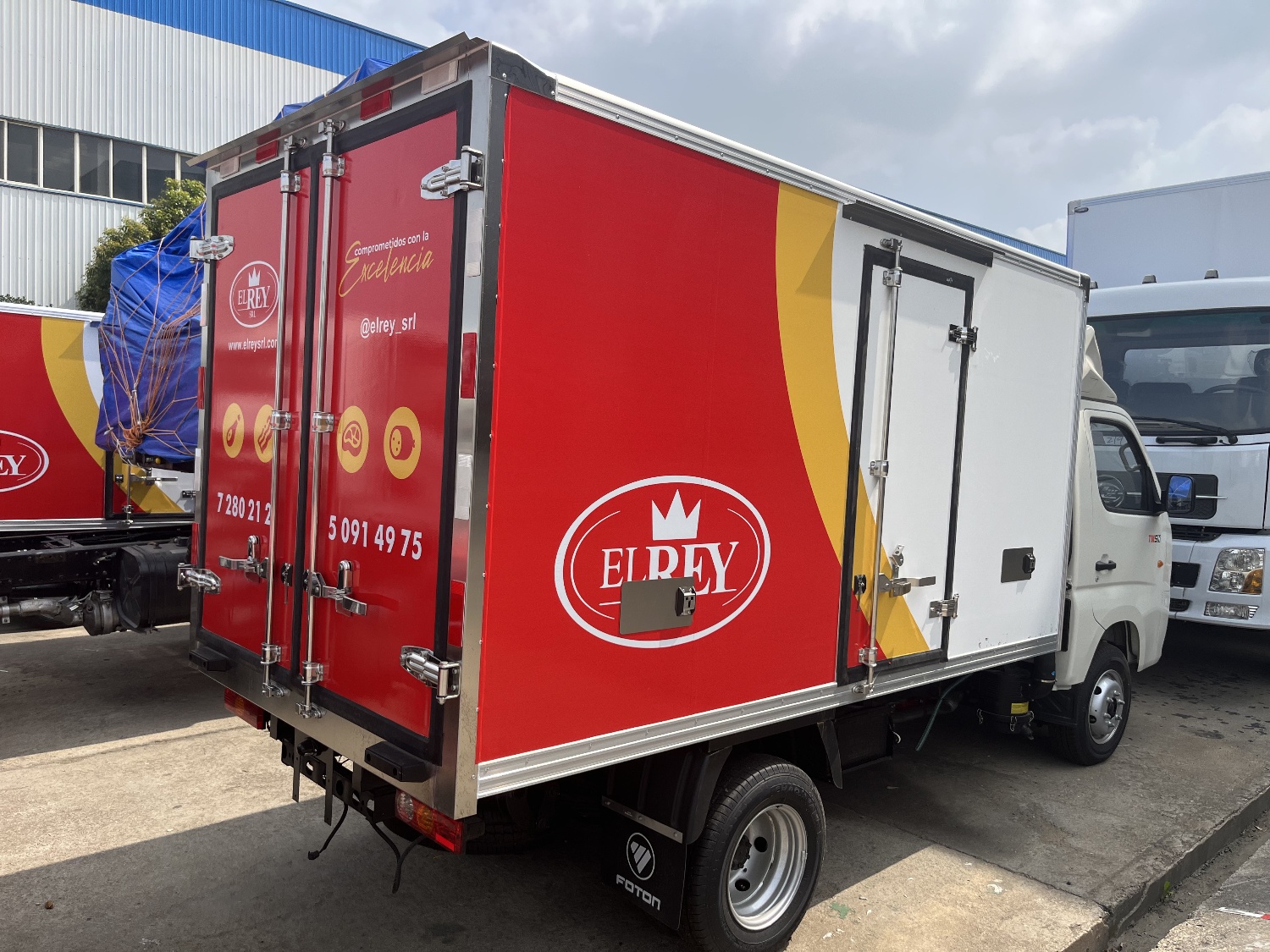

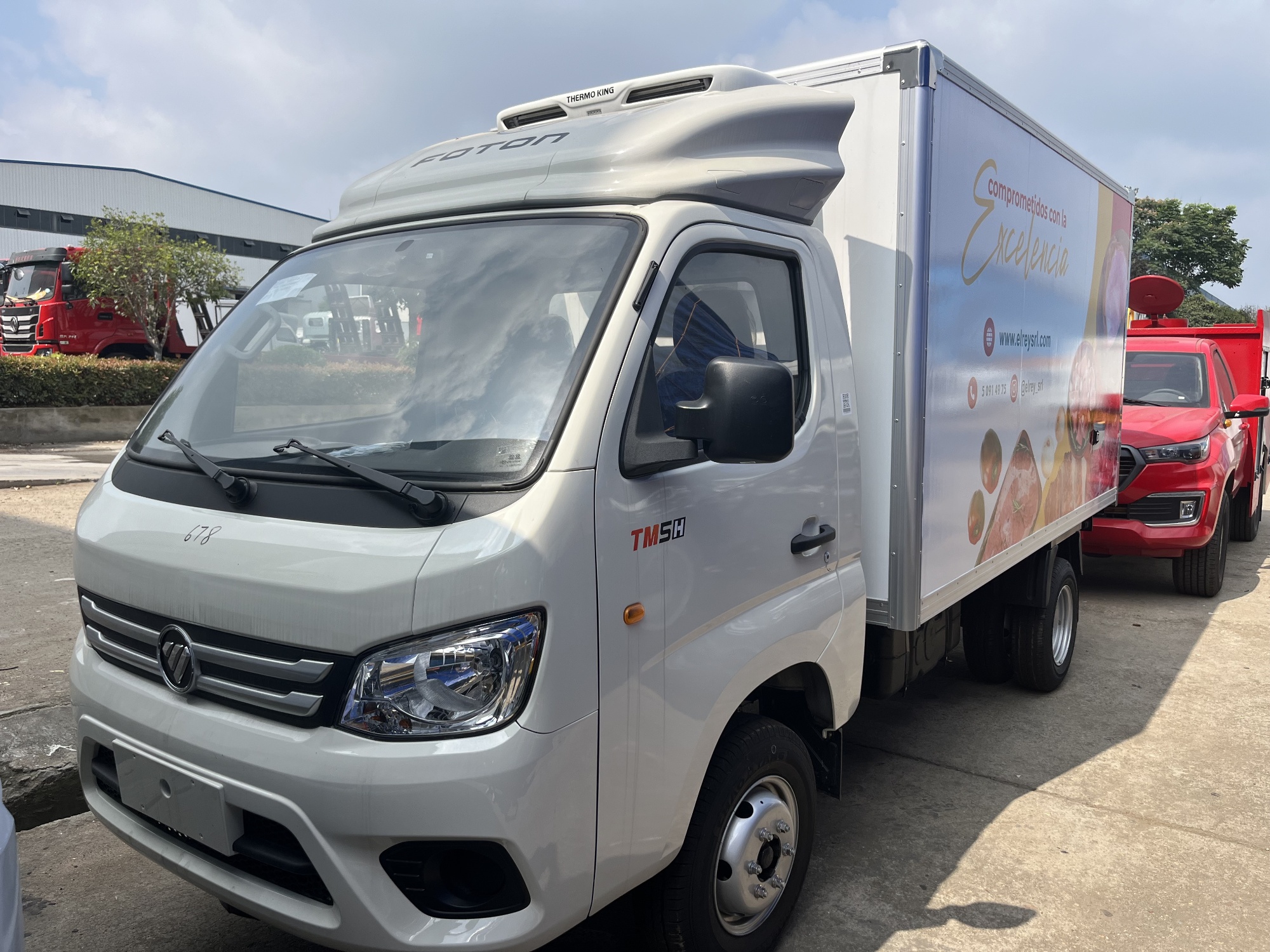

Look at the finished pictures of FOTON diesel engine refrigerator van truck are as below.
foton diesel engine small refrigerated truck for sale
The details of FOTON diesel engine refrigerated truck is as below.
FOTON M2 single row driver cab
4*2 LHD(left hand drive), RHD optional
2850mm wheelbase
4A2-88C53 88hp diesel engine, Euro 2 emission standard
5+1 manual gears,
185R14lt*6+1 spare
And the cold room box body dimension (L*W*H) of this FOTON diesel engine refrigerated truck is 3200*1700*1750 (mm); while the overall dimension (L*W*H) of this FOTON refrigerated truck is 5070×1900×2730 (mm). Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
Cold Room | Box inner dimension(mm) | 3200*1700*1750 |
Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |
Refrigeration unit | Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
| |
Remark | The refrigerated truck can choose to hydraulic tail plate | |
