40% discount 5tons crane truck new in stock for sale
Recently, there is a new 5Tons crane truck in stock for promotion for China National Day.
The promotion date from September 20th to 30th, October.

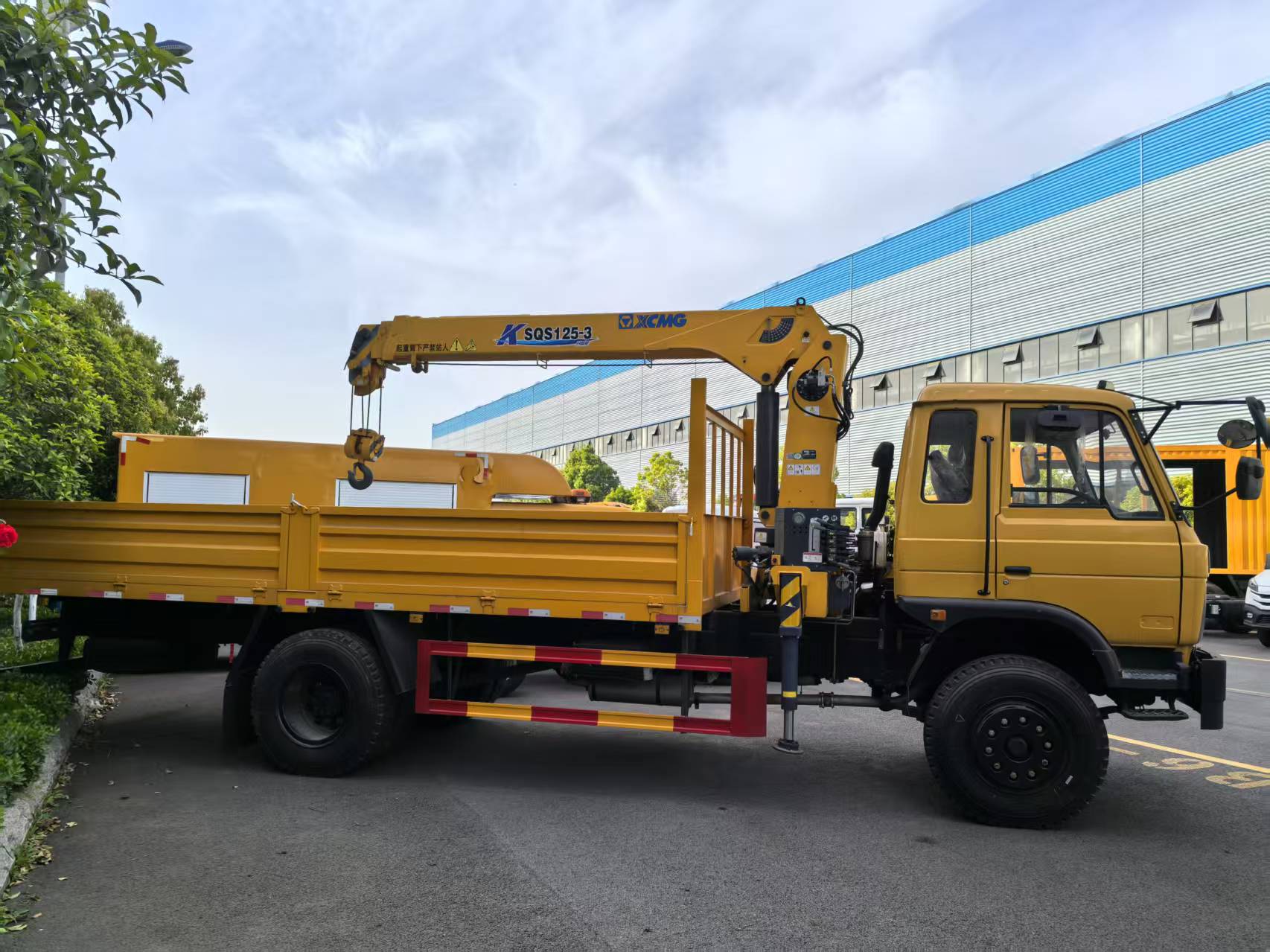

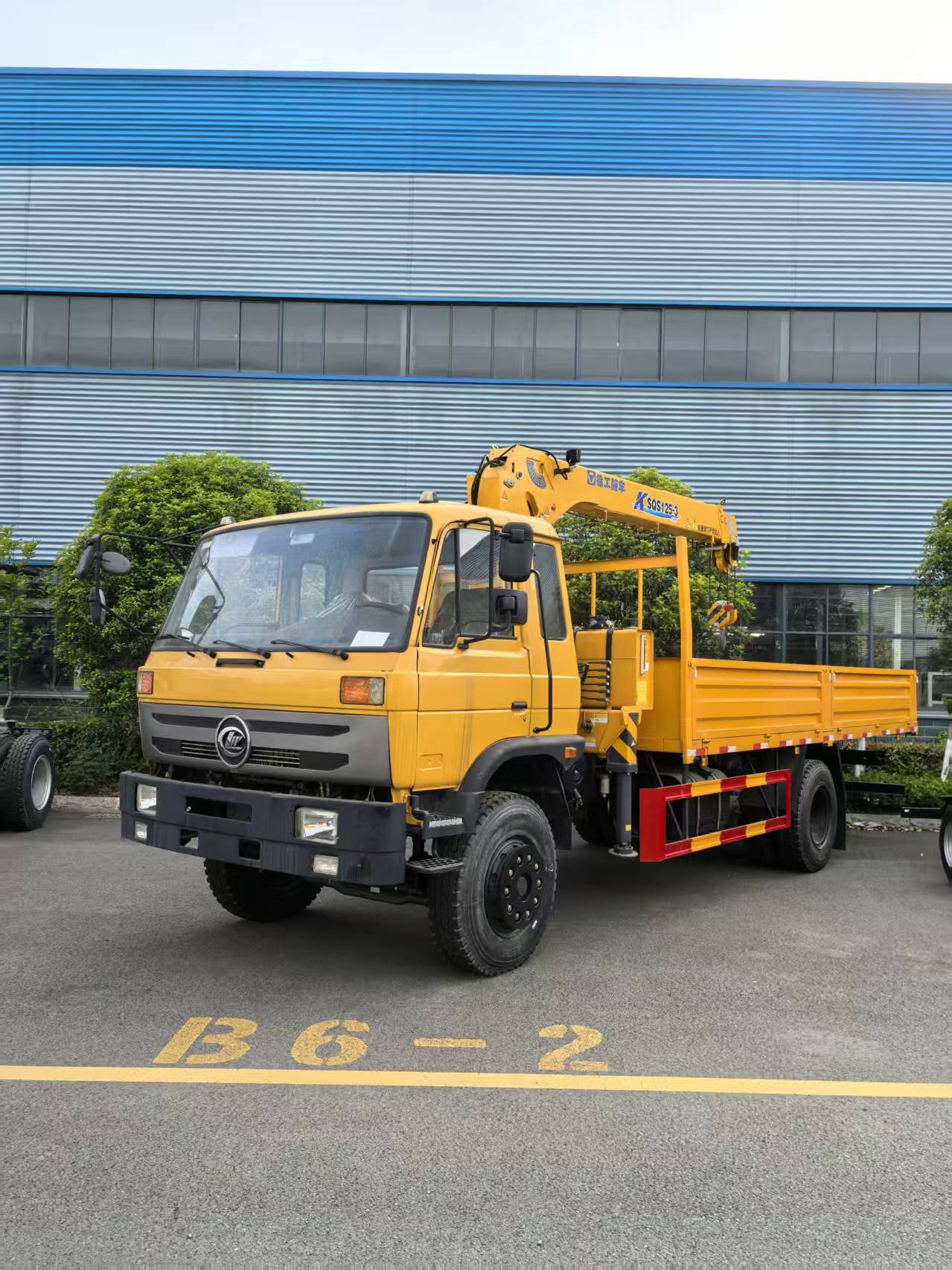

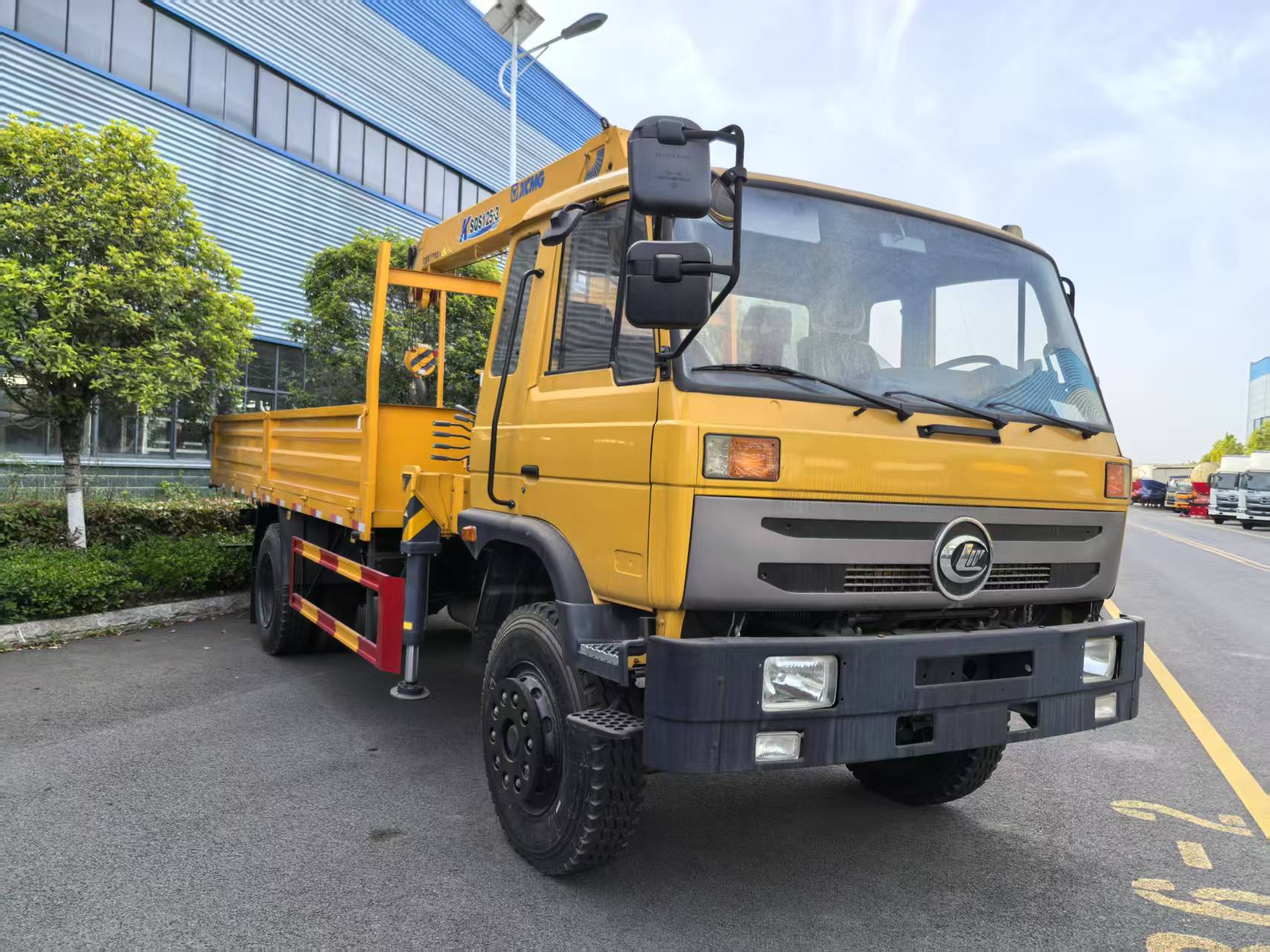

The full pictures of 5tons crane truck are as below.
5tons telescopic crane boom mountedon cargo truck for sale
Main technical parameters of 5tons crane truck is as below.
Product name | 5T telescopic crane mounted on truck for sale (CLW5161JSQT3) | |
Parameters | Overall dimension length/width/height (mm) | 9000*2490*3600 |
Cargo body dimension (L*W*H)(mm) | 5800*2300*600 | |
GVW(kg) | ||
Kerb Mass(kg) | 8105 (Kg) | |
Rated mass(kg) | 7500(Kg) | |
Approach angle/ Departure angle(mm) | 32/18 (°) | |
Front suspension/rear suspension(mm) | 1250/2650 (mm) | |
Fuel Type | diesel | |
Max Speed | 90 | |
Engine | Type | B190 33 |
Displacement/Power(kw) | 5900ml/140KW/190hp | |
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
Type | 6-in-line inter-cooling; | |
Chassis | Drive Type | 4×2 |
Wheelbase(mm) | 4700 | |
Tread(front/rear) | 1940/1860 (mm) | |
Transmission | Little 8 speed manual gearbox, | |
Braking system | Air braking | |
Cab | one row and a half driver cab | |
Number of spring axle(front/rear) | 9/10+8 | |
Tire Type | 10.00R20 tires | |
Upper part(cargo van and crane boom) main parameters | ||
Upper body | Cargo body dimension | 5800*2300*600 |
Material | Carbon steel | |
Side sheet thickness | 1.5mm thickness | |
Bottom sheet thickness | 3mm thickness | |
Painting | Upon request | |
Crane boom main parameters | ||
Crane boom | Choose to install XCMG 5tons 3sections telescopic crane boom | |
Lifting height | 10.5m | |
Working radius | 8.7m | |
Hydraulic operation | Yes, full hydraulic operation | |
Full rotation | Yes, full rotation | |
The color of the whole truck is upon request. | ||
If everyone interested in it, please kindly contact us sooner.
