performance parameter | Truck name | Dongfeng dump truck |
| classification of trucks | Light duty | |
| GVW（gross vehicle weight ） | 4500kg | |
| Cab type | Single row | |
| Cab width | 1650mm | |
| Wheel Base | 2800 | |
| maximum speed | 110km/h | |
| Grade Ability | 30% | |
| Dump tipper box dimension(L*W*H) | 3100×1800×450mm | |
| Overall dimension(L*W*H) | 4970×1940×2220mm | |
| curb weight | 1900 | |
engine | Engine Model | QC485 |
| rated power | 42kw | |
| maximum torque | 140N·m | |
| Emission Standard | Euro I | |
engine system | Fuel tank capacity | 55L steel |
| Engine flame-out mode | Electric | |
| Fan clutch | Yes | |
clutch | Clutch form | Diaphragm cable type |
| Clutch Spec | φ265mm | |
| Clutch power assist form | √ | |
gearbox | Gearbox Model | 5G21 5+! gears, manual type |
| Gearbox material | Aluminium | |
| Force extractor window | √ | |
transmission shaft | Propeller Shaft style | Two section |
| Propeller Shaft material | Steel | |
Front axle | Front axle form | Non-independent suspension |
| Front axle load | 1500kg | |
| Rear axle | Rear axle load | 3000kg |
| speed ratio | 3.909 | |
braking | Braking Mode | Liquid brake |
| Automatic Slack Adjuster | √ | |
| front brake | Disc | |
| rear brake | Drum | |
| Parking brake | Central brake | |
| Air-reserve tank material | Iron vacuum cylinder | |
carriage | height of the frame | 140*50*4 |
| The structure of the frame | Side beam frame | |
| The layer number of the frame | Single layer | |
| Truck back fence | √ | |
| 悬架 Suspension | Number of front plate springs | 3 |
| front shock absorber | √ | |
| Number of front plate springs | 5 | |
| rear shock absorber | √ | |
| back stabilizer bar | √ | |
tyre | Tires | 185R15 8PR |
| Rim material | Steel | |
| number of tires | 6+1 | |
cab | Cab reversal form | Cannot flipped |
| Bumper material | Steel | |
| Doors door | Lifting form of window glass | electric |
| central lock | √ | |
Lamp | turn light | √ |
| front fog lamp | √ | |
| LED Daytime Running Light | √ | |
mirror | Rear-view mirror adjustment | Manual |
| Rear-view mirror | √ | |
| Door opening light | √ | |
seat | Seating arrangement | 1+1 |
| Driver's seat adjustment | Manual | |
| Passenger seat adjustment | Manual | |
| Seat fabric | Fabric seat | |
| Driver Seat-belt Warning | √ | |
Audio electronics | Blue-tooth telephone | √ |
| Blue-tooth MP3 | √ | |
| Multi-function steering wheel | √ | |
| coD91:D93ventional panel | √ | |
| Electric horn | √ | |
air conditioner | warm braw | Ordinary warm air |
| air conditioner | √ | |
Interior | drivers‘s sun visor | √ |
| passenger‘s sun visor | √ | |
| Skylight | × | |
| Tools | √ | |
others | van body side 3mm bottom 4mm, rectangular van body, single door, etc. Real loading capacity is up to 3000kgs | |

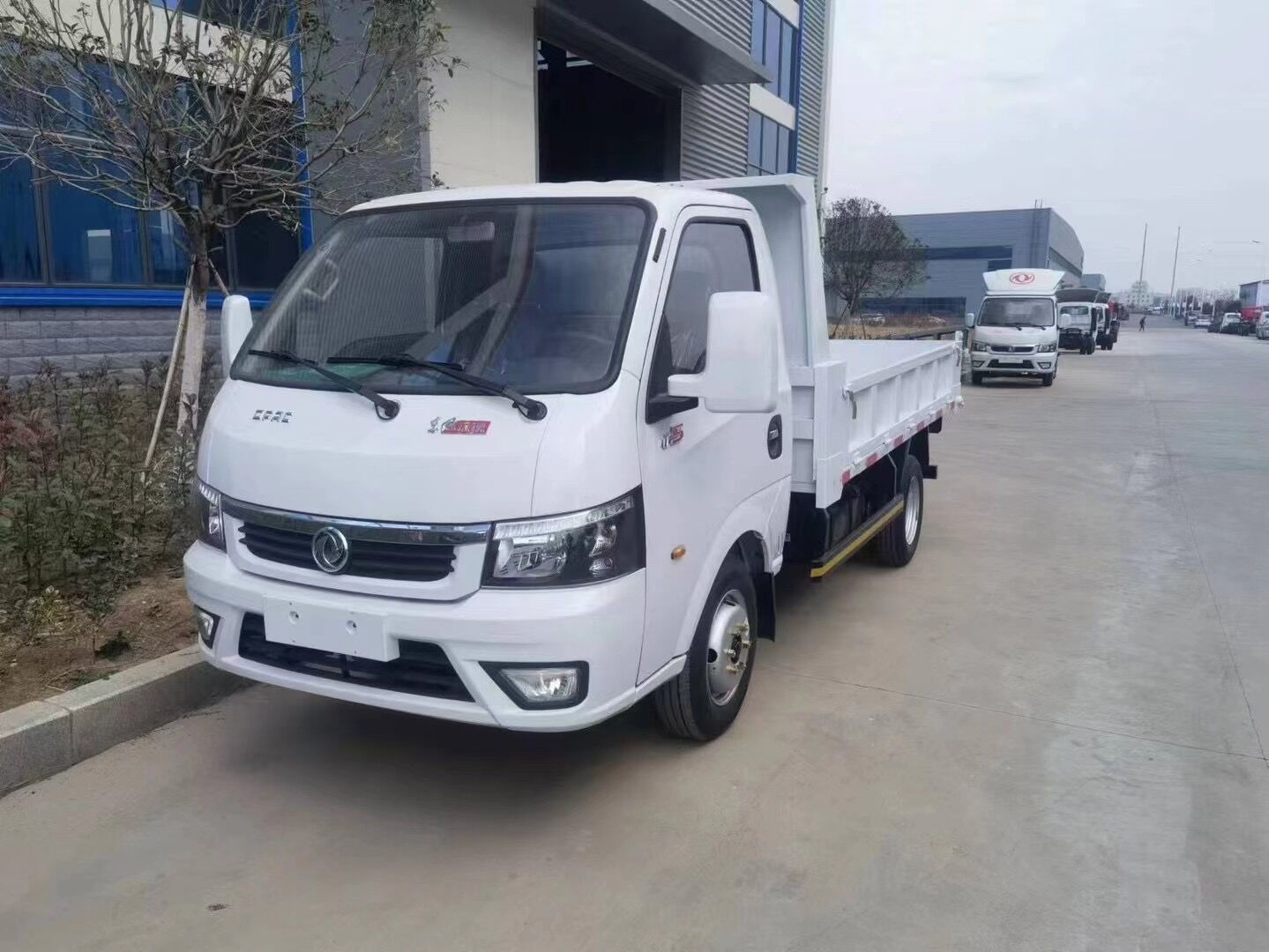

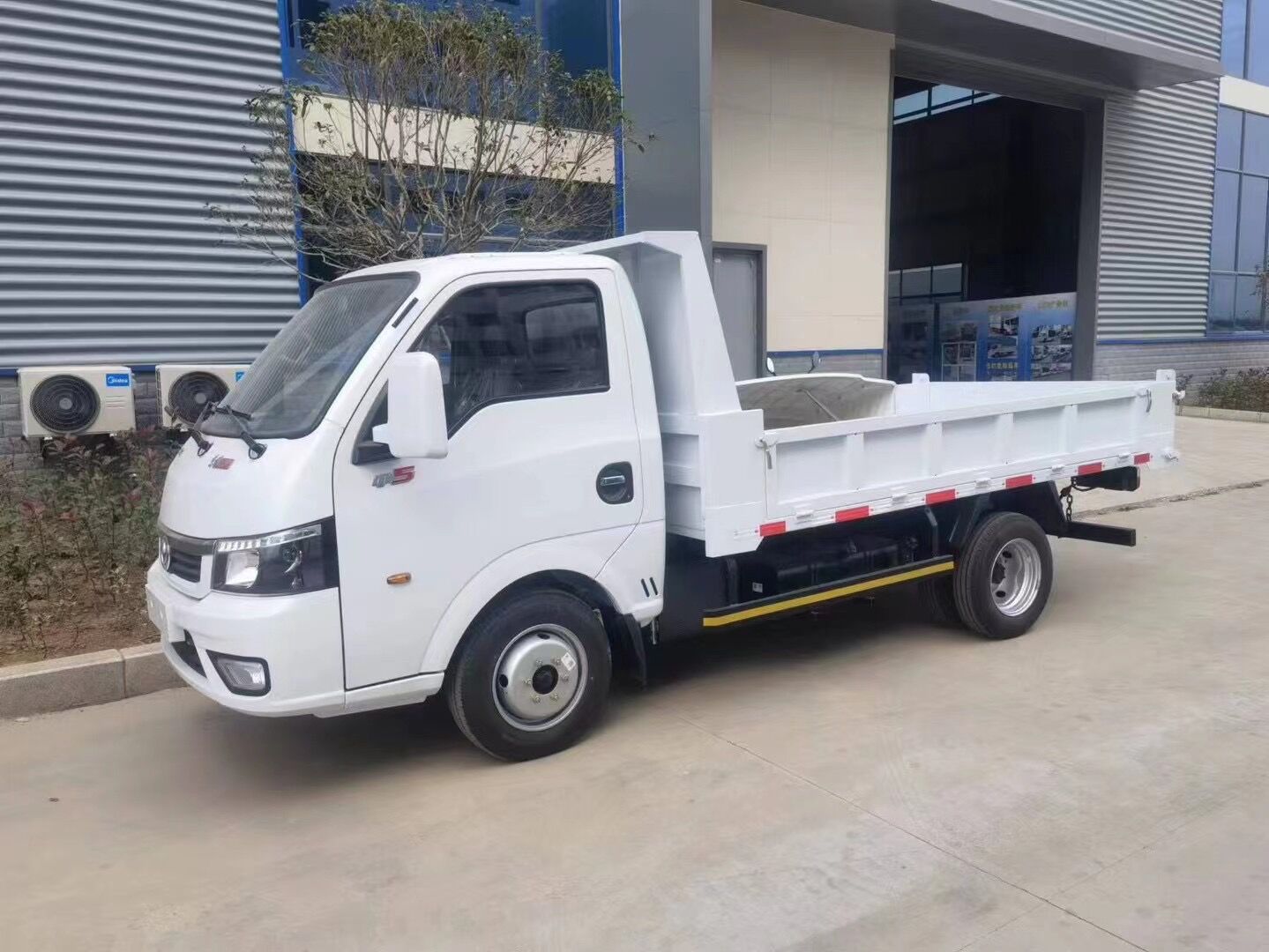

More pictures of dongfeng dump tipper truck 3T is as below.
Good price 3T loading capacity dongfeng diesel mini dump tipper truck for sale
HOT SALE! Mini dongfeng dump truck 3T loading capacity for sale
Dongfeng tuyi 1650mm single row driver cab
4*2 LHD,
2800mm wheelbase
QC485 42KW/57hp diesel engine, Euro 1 emission standard
5+1 gears, manual type
185R15 8PR*6+1 spare tires
Air conditioner, electric windows, etc.
Overall dimension(L*W*H): 4970×1940×2220mm
Dump tipper truck dimension(L*W*H): 3100×1800×450mm
van body side 3mm bottom 4mm, rectangular van body, single door, etc.
Real loading capacity is up to 3000kgs
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
