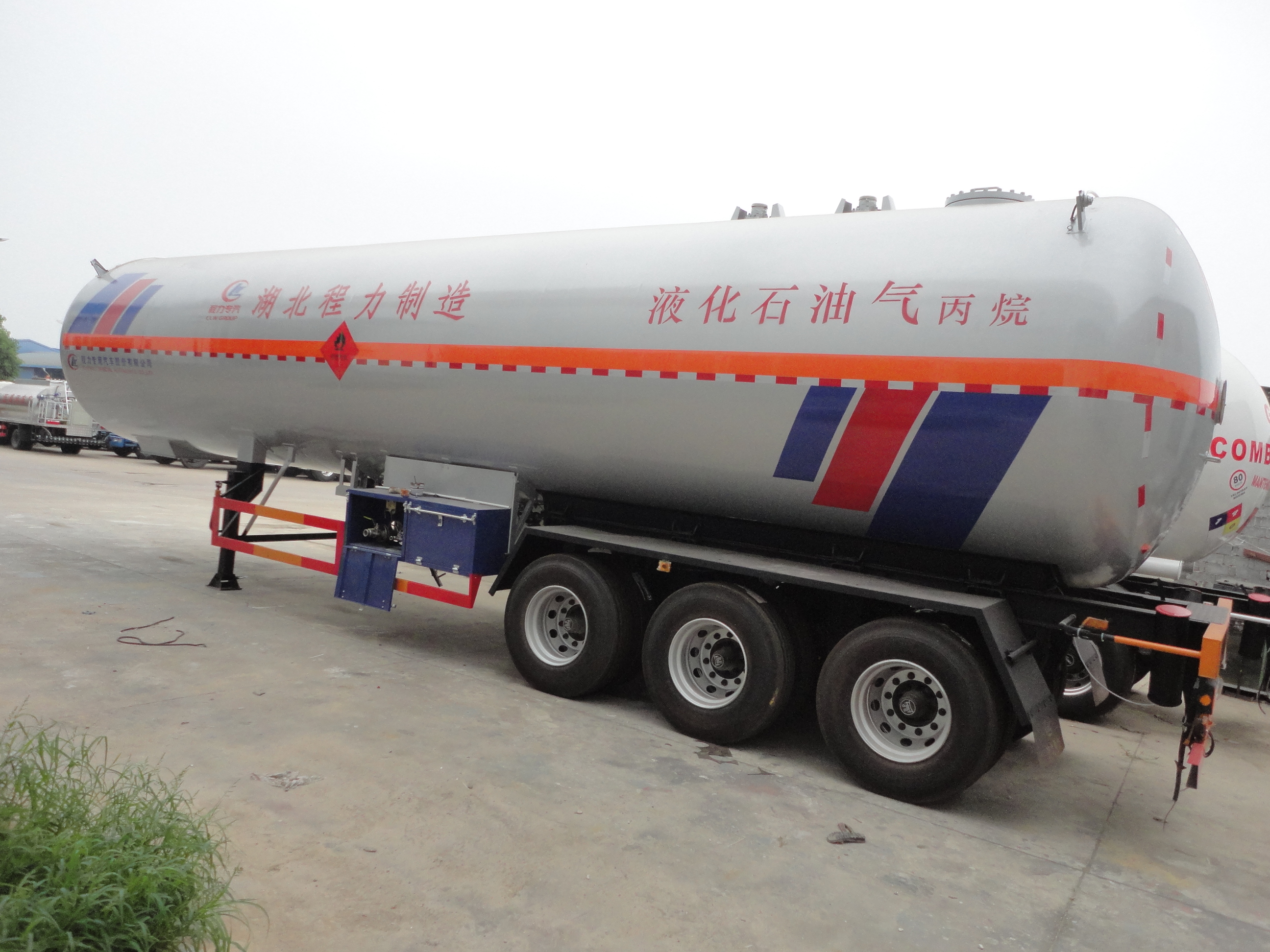

3 axles 56cbm LPG tanker semitrailer for propane

3 axles 56cbm LPG tanker semitrailer for propane, the wheelbase of the semitrailer is 6865+1310+1310(mm), the overall dimension 12700*2500*3975(mm), the volume is 56cbm; the transporting medium is propane, and the designed pressure is 1.61Mpa, the filling ratio is 0.42.

The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges(FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.

The LPG tanker semi-trailer is line with the GB150-1998《steel pressure vessel》, <>, <>.

Chengli Special Automobile Co., Ltd. is the leading manufacturer of LPG pressure vessels, LPG tank trucks, LPG storage truck, LPG gas tank, LPG tank trailer, etc. in China since 2004s. With many years’ experience in manufacturing and selling, Chengli Special Automobile Co., Ltd could offer storage tanks series (10cbm-100cbm propane storage tank, 10cbm-100cbm liquid ammonia pressure vessels), LPG gas trailers (2 axles LPG trailer for propane, 3 axles LPG trailer for propane, 3 axles LPG trailer for methoxymethane, 3 axles LPG semitrailer for liquid ammonia), and LPG tanker trucks for loading propane, propene, liquid ammonia, isobutene, propylene, etc.

3 axles 56cbm LPG semitrailer for propane
Total mass(kg)	39000	Curb mass(kg)	15480
Rated mass(kg)	23520	Axle load(kg)	-/23000( triple axles)
Driver cab person		Bearing mass of semitrailer saddle(kg)	16000
Approach/departure angle(°)	-/20	Front/rear suspension(mm)	-/1550
Overall dimension(mm)	12700X2500X3975	Cargo body dimension(mm)	XX
Tyre	12R22.5 12PR	Tyre nos.	12
Front tread(mm)	-	Rear tread(mm)	1840/1840/1840
Wheelbase(mm)	6865+1310+1310	Springs	-/7/7/7

LPG storage tanks are kinds of the LPG tank mounted on the frame. It is the new type LPG pressure vessels of Chengli Special Automobile Co., Ltd. LPG storage tanks and LPG pressure vessels belong to the new time exchanging products, in line with the world logistics developing directions. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc.

The functional advantages of the LPG container tank trailers manufactured by Chengli Special Automobile Co., Ltd. as below.

LPG container tanker is not only used as the storage tank device, but also LPG pressure vessel. LPG container tanker and pressure vessel can adopt the following transporting ways such as, road, rail way, by ship, by sea, etc. And the pressure vessel and LPG tanker is approved by State Bureau of Technical Supervision.

LPG tank container, pressure vessel and LPG storage tanker adopts derusting by sandblast treatment, flame plating, Puffing, etc.

The customers can choose high quality China-made or imported safety assembly, with enough units.
The LPG tank container, pressure vessel and LPG storage tanker is with light duty driving part design, the effective loading can reach to the max, reducing the cost.

The tank containers trailer manufactured by Chengli Special Automobile Co., adopt scientific leading treatments, assuring the lowest Shrinkage and highest
dimension stability at the low temperature.

According to the transporting mediums, the common materials adopt carbon steel, aluminum, steel lined plastic (rubber), plastic, stainless steel, manganese steel, etc.

The tanker adopts leading welding crafts and flare groove welding Arc-shaped, and also body unit type composition of steel and plastic one-formed , quick installing, easy maintain, and handsome looking, etc.

The tankers are installed safety emergency protection device, offering full sealed remote material handling operation system, with lowest vapor rate, etc.

Chengli Special Automobile Co., Ltd. can design and refit the tankers, trucks, semitrailers, container tankers, pressure vessels, storage tankers, etc. for the liquid ammonia, propene, propane, LPG, isobutene, methoxymethane, etc.

The shape of the tankers can be round, oval and round aquare, etc. And customers can choose to install heating pipes, insulation layers, etc.

The tanker semitrailer driving parts can install with air-suspension system or steel spring suspension according to customers’ requirements.
