General

Truck Name

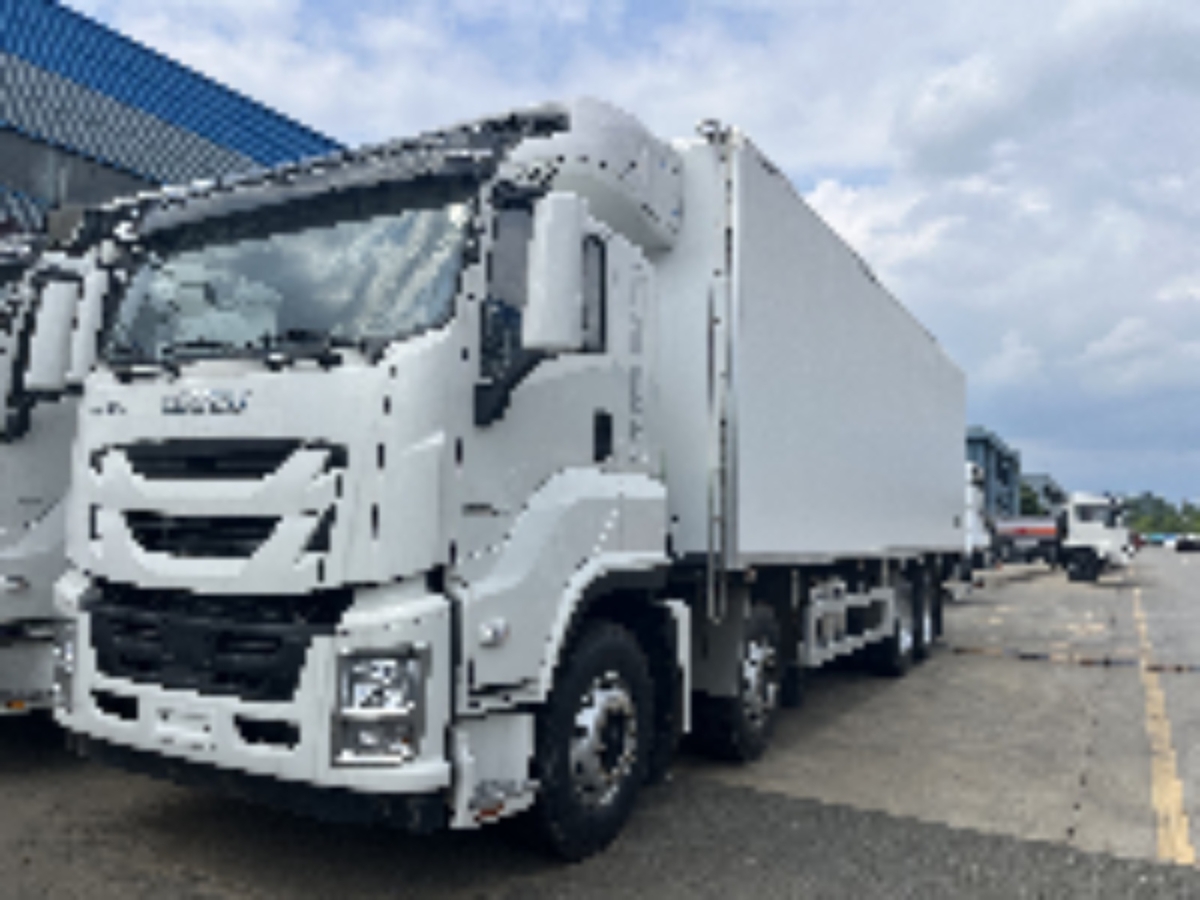

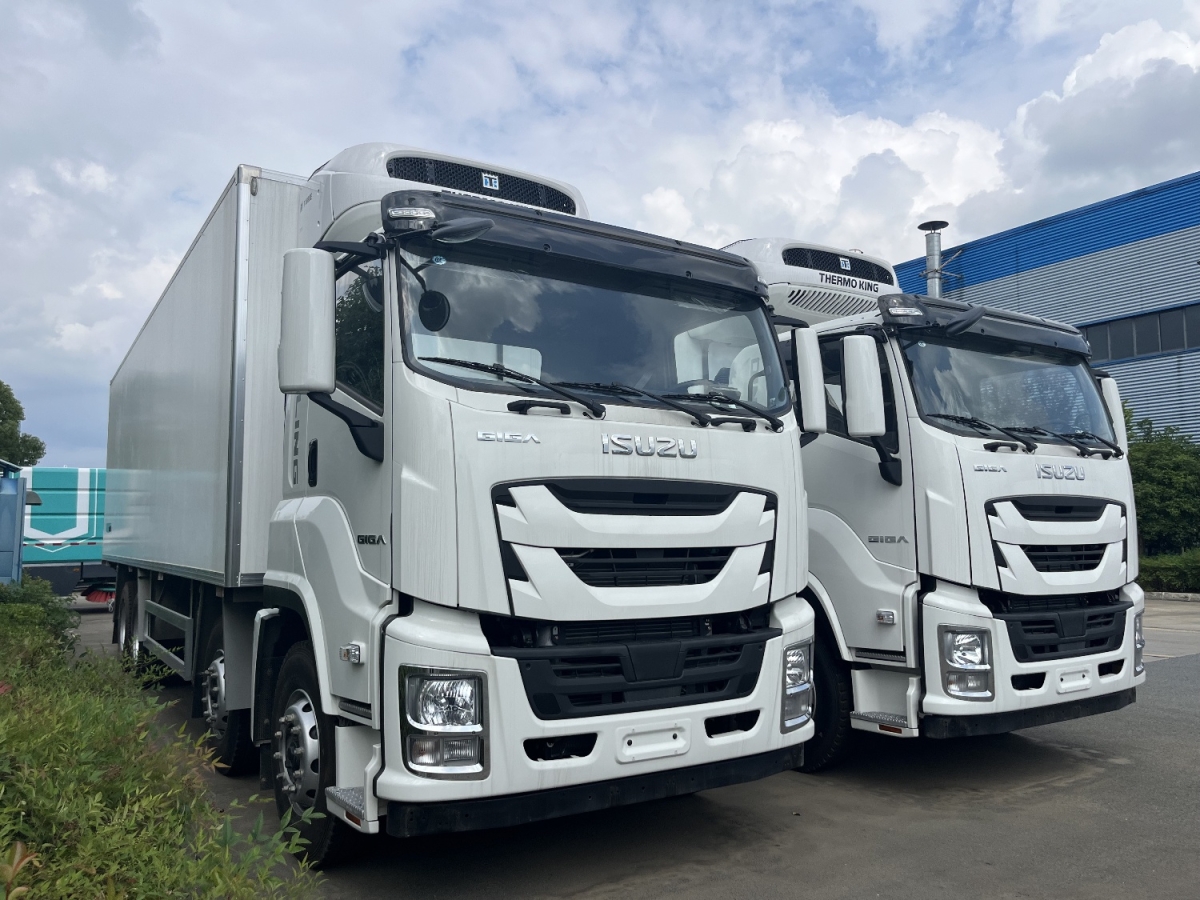

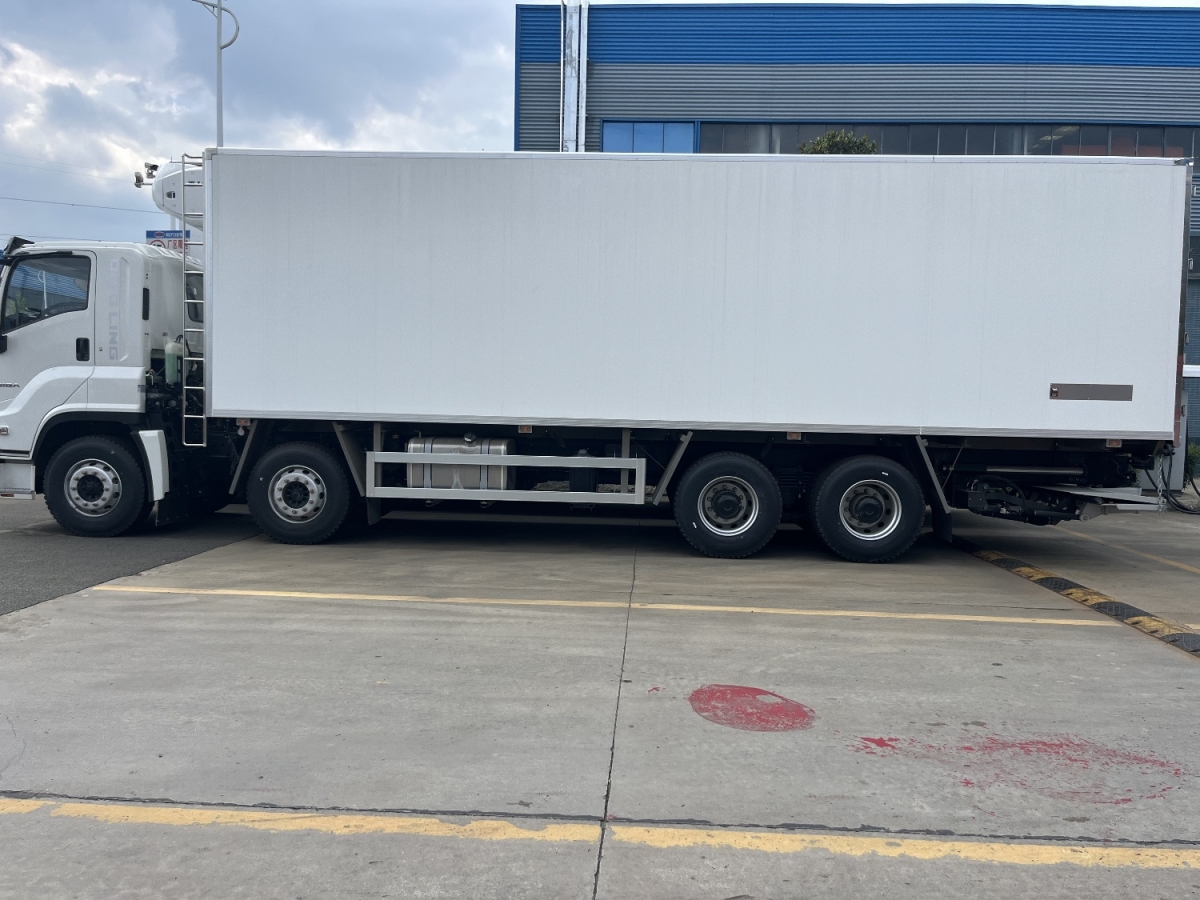

ISUZU refrigerated truck for sale

Drive Type

8*4

Payload (kg)

17220kgs

Seating person

3

GVW (kg)

32000kg

Curb Weight (kg)

17220kgs

Overall Dimensions (mm)

12000×2600×3990(mm）

Driver cab

ISUZU GIGA luxurious one row and a half driver cab

Engine

Engine Model

6UZ1-TCG60 ISUZU 350hp/6UZ1-TCG61 ISUZU 380hp/6WG1-TCG60 ISUZU 420hp/6WG1-TCG61 ISUZU 460hp diesel engine,

Engine Brand

ISUZU

Fuel Type

Diesel

Max output (hp/rpm)

350hp/380hp/420hp/460hp

Emission Standard

Euro 5/6

Capacity (cc)

15681

Engine type

6 cylinders, inter-cooling diesel engine

Chassis

Chassis Brand

ISUZU

Tire Specification

295/80R22.5*12+1 spare

Wheelbase (mm)

1850+4575+1370mm wheelbase

Axle No.

2

Front/Rear axle

7.5+7.5ton front axles /20tons double rear axles

Steering Wheel

Left hand drive

Gear Box

FAST 12+2 gears, manual type

Others

Air conditioner, power steering, central lock, electric window, etc.

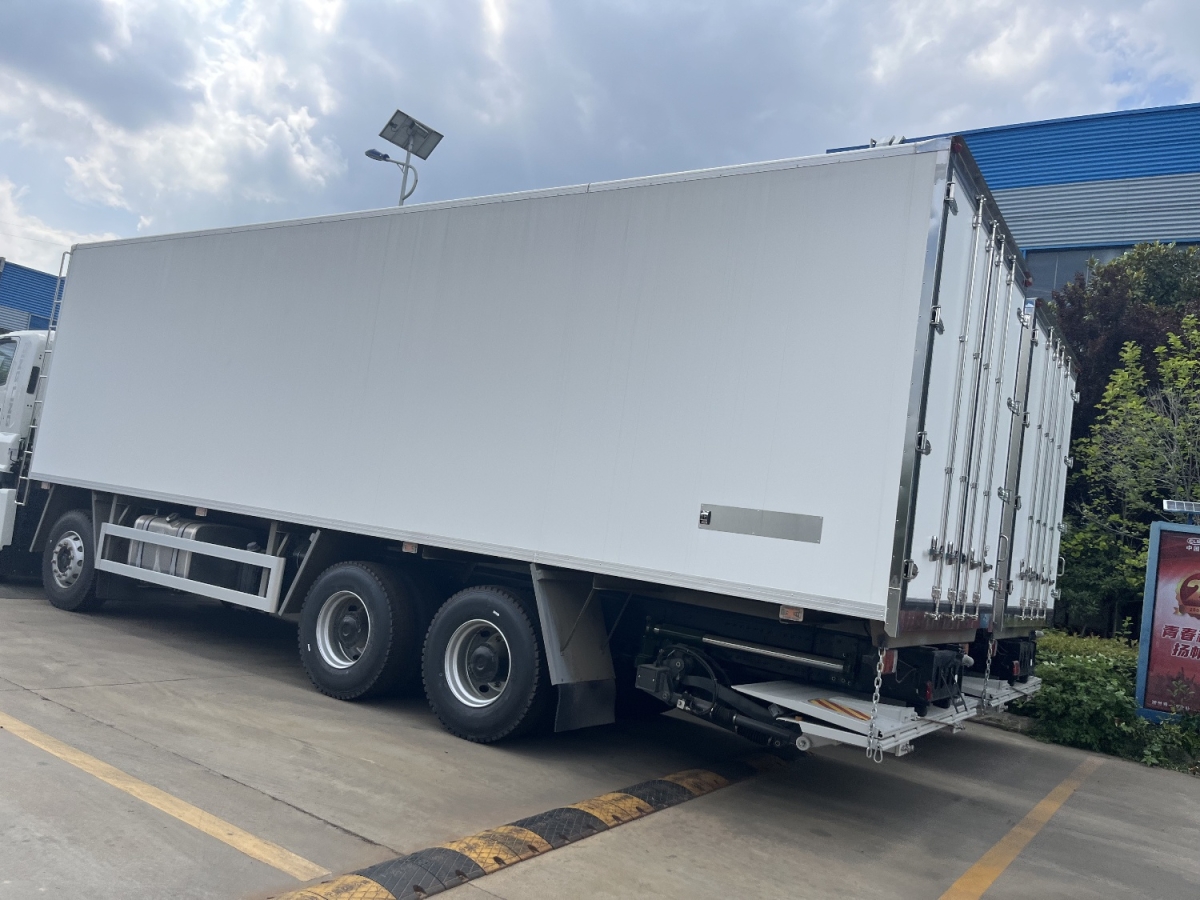

Cold Room

Box inner dimension(mm)

9550×2420×2370(mm)

Box Side

Exterior and interior with FRP(fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.

Box Floor

Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.

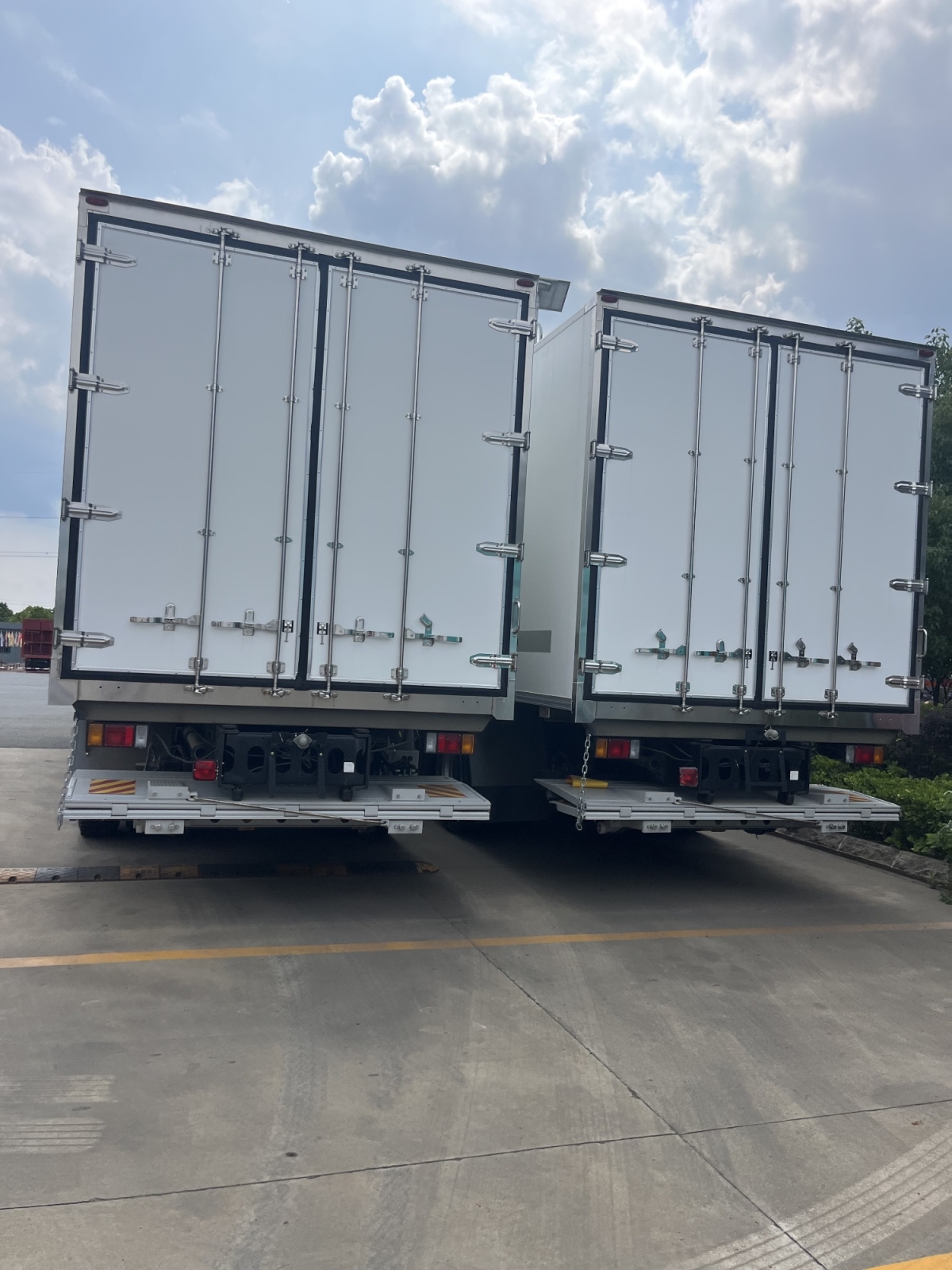

Doors

Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.

The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.

Door edgings, door locks and accessories use stainless steel materials.

Refrigerator Unit

Refrigeration unit

Choose high quality USA Carrier/THERMO KING, which operated on self-diesel engine operating temperature wil be -15℃.And the cooling unit can be adjusted at the driver cab.
