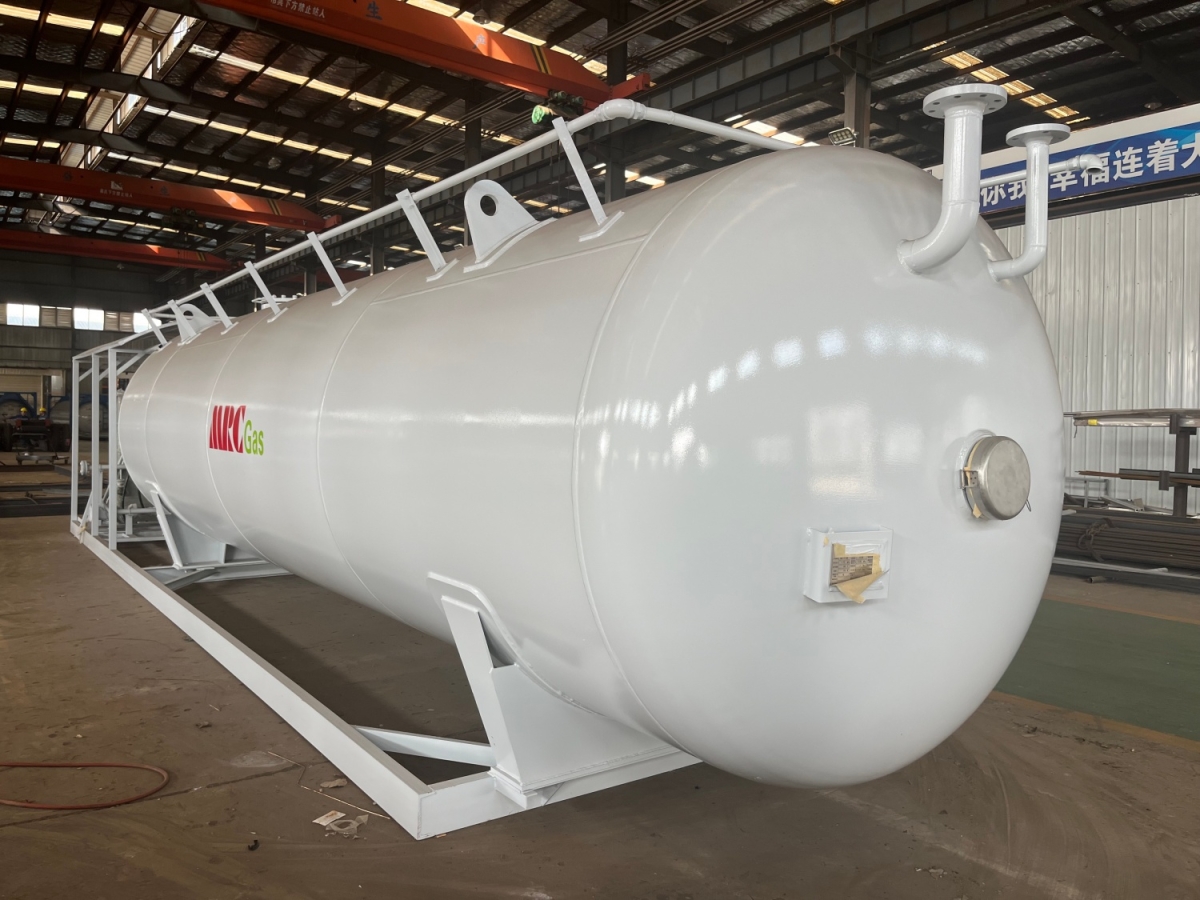

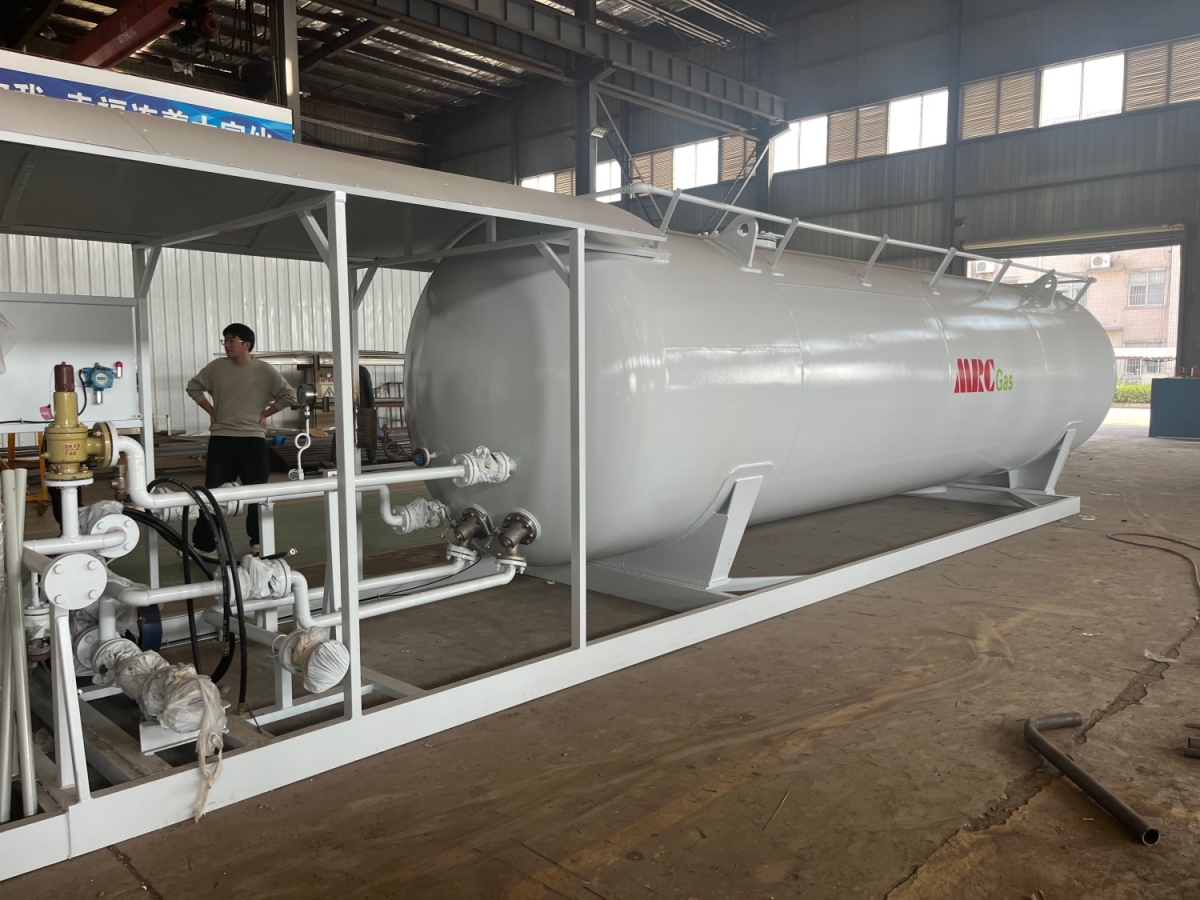

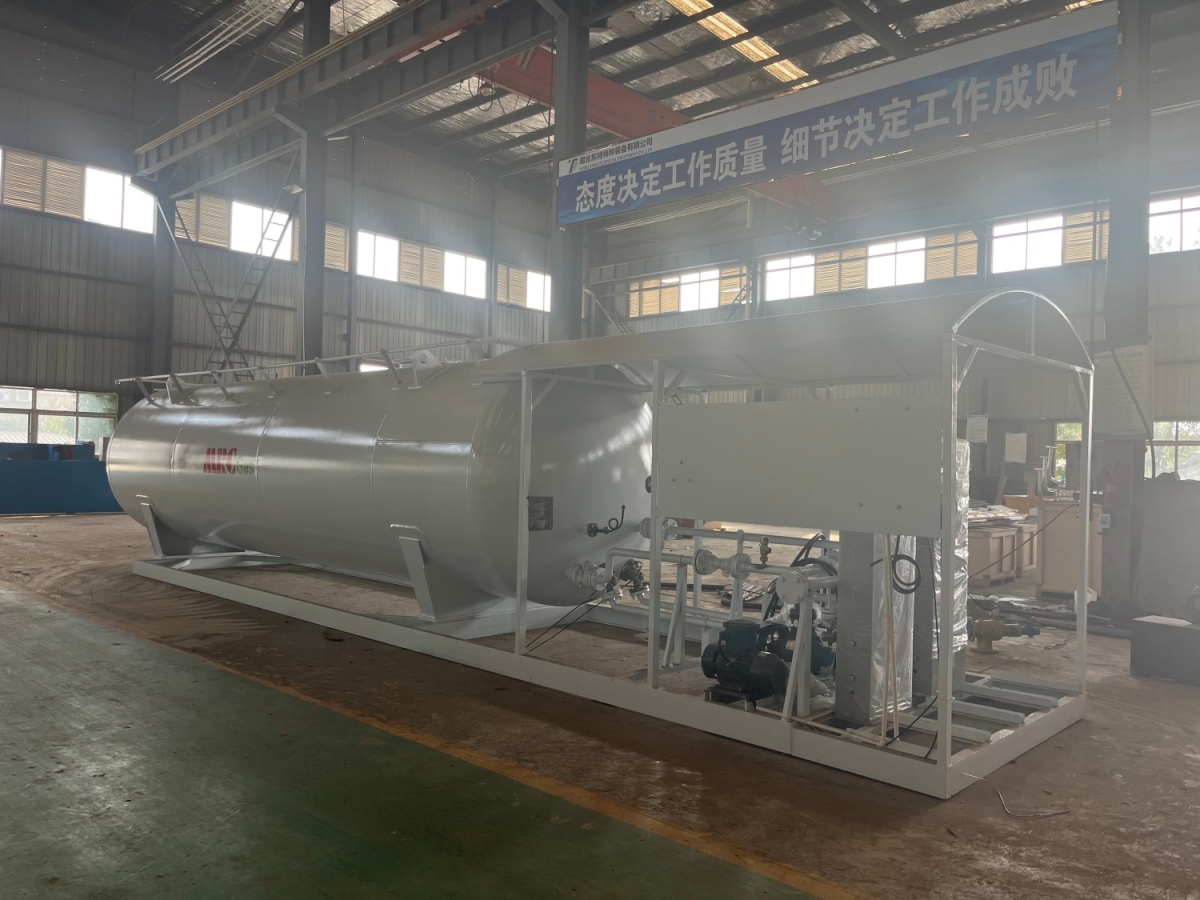

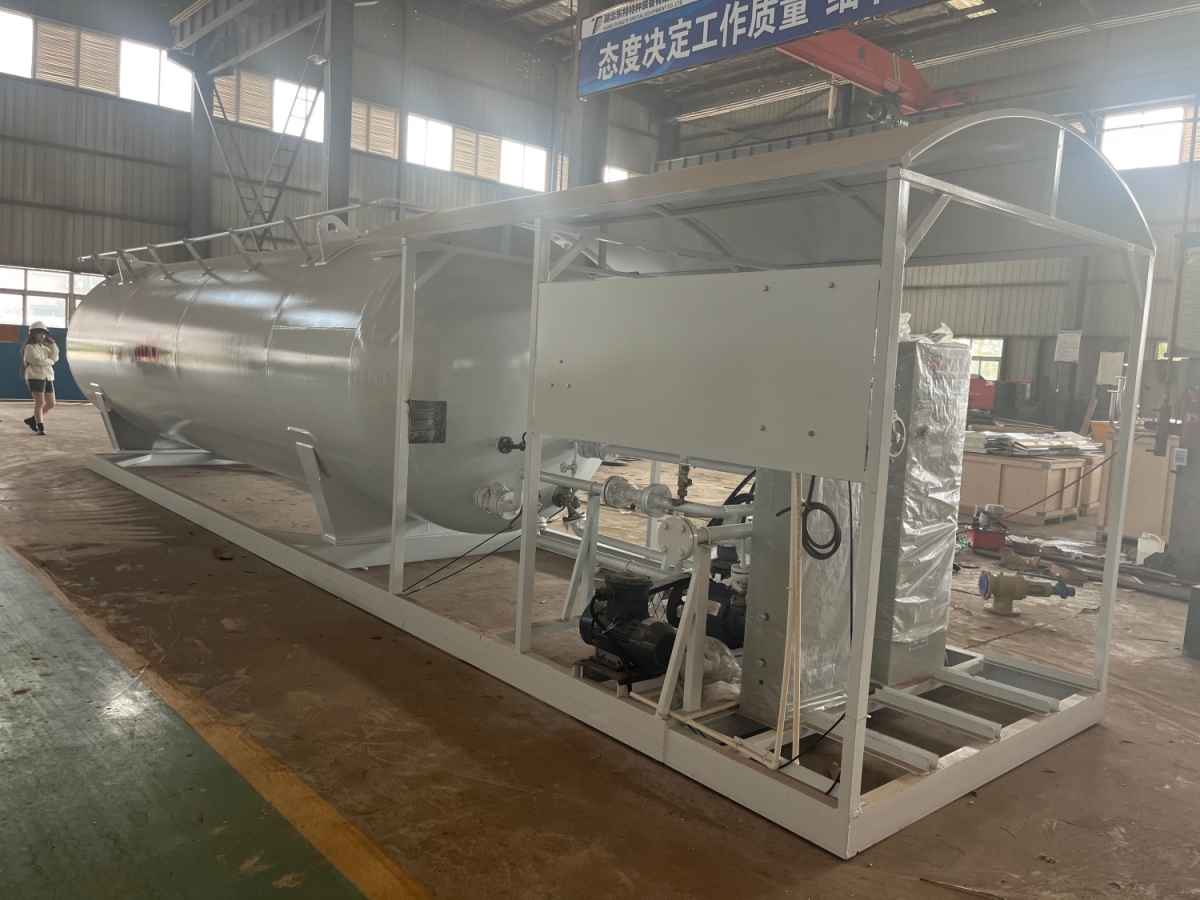

customized 25000Liters 10tons skid lpg gas tanker with 2 digital scales for sale
Chengli Special Automobile Co.,Ltd, a famous manufacturter in China. Pressure vessel factory is a very important part of all the factories. Pressure vessel factory is professional in LPG tank manufacturing in China, our products fully passed ISO9001-2000 international quality system and Certificate for China Compulsory Product Certification. We can produce various kinds of LPG Truck, LPG Semi-trailer, LPG Storage Tank, LPG skid station and LPG tank container.
1. We have cooperation with many famous chassis company, like FAW, DONGFENG, SINOTRUK, FOTON etc. The LPG truck's valid volume is from 5 CBM to 35.5 CBM.
2. The LPG trailer's valid volume is from 40.5 CBM to 59.52 CBM. All the safety accessories: safety valve, thermometer, pressure guage, level gauge, emergency cut-off valve etc.
3. Our LPG storage tank is ranged from 10cbm to 100cbm, both ground and underground.
4.Material: Q345R & Q370R.
Volume of Tank | 5m3/8m3/12m3/15m3/20m3/25m/32m3/40m3/45m3/5-m3/60m3/65m3/70m3/80m3/90m3/100m3/120m3 | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | 1 | ||
| Inflow Pipe | 1 | ||
| Outlet | 1 | ||
| Gas phase balance pipes | 2 | ||
| Manhole | 1 | ||
| Drain Hole | 1 | ||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Parts list | ||
| Item | Model Number | Quantity |
| LPG Tanker | 5m3/8m3/12m3/15m3/20m3/25m/32m3/40m3/45m3/5-m3/60m3/65m3/70m3/80m3/90m3/100m3/120m3 | 1 |
| Pump | 2" inlet & 2" outlet | 1-2 |
| Explosive-proof Motor | 380V with 220V adapter | 1-2 |
| digital scale | Filling 1kgs-150kgs domestic gas cylinders | 1-4 |
| Pipes | / | 1 |
| Cut-off Valve | 25 | |
| 10 | ||
| Safety Valve | 1 | |
| Pipe Safety Valve | A21F-25 DN15 | 1 |
| Level Gauge | Float ball type | |
| Discharging pipe | L=4M DN50/DN25 | |
| Shock-absorbing Tube | L=500mm DN50 | |
| Flange | 2.5MPaDN15 | |
we supply 5-120m3 lpg tank, lpg storage tank, lpg transport tank, lpg tanker trailers, propane transport trailers for sale, propane tanker trailers for sale, 50m3 lpg skid filling station, 50m3 lpg filling skid station, gas filling station, lpg skid-mounted filling station. Top safety 50cbm LPG gas filling cylinder cooking gas station.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is +86 13329899995.
