As a professional special vehicle manufacturer in China, we manufacture the biggest LPG truck in China whose valid volume is 35.5 cubic meter, the biggest lpg trailer in the world whose valid volume is 59.52 cubic meter. And the lpg gas tank we manufacture is from 5cbm to 200cbm. We not only manufacture lpg gas storage tank on ground but also the lpg gas storage tank under ground.
We have manufacture license of A2 type of pressure vessel, C2 type of lpg trucks for sale, C3 type of lpg tank container, etc. The material of our lpg tank for sale is Q345R and the limited service time of our lpg tank is 15 years.
If you are interested in our lpg gas tank and want to get the latest lpg tank price, please feel free to contact me.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG gas trailer, LPG gas truck, LPG gas storage tank, etc. in China. With many years’ experience in supplying, Chengli Special Automobile Co., Ltd. could supply 2 axles LPG gas trailers, 3 axles bulk LPG gas trailers, LPG gas storage tanks from 5000L to 120000L, LPG gas delivery trucks, LPG gas dispenser truck, etc.

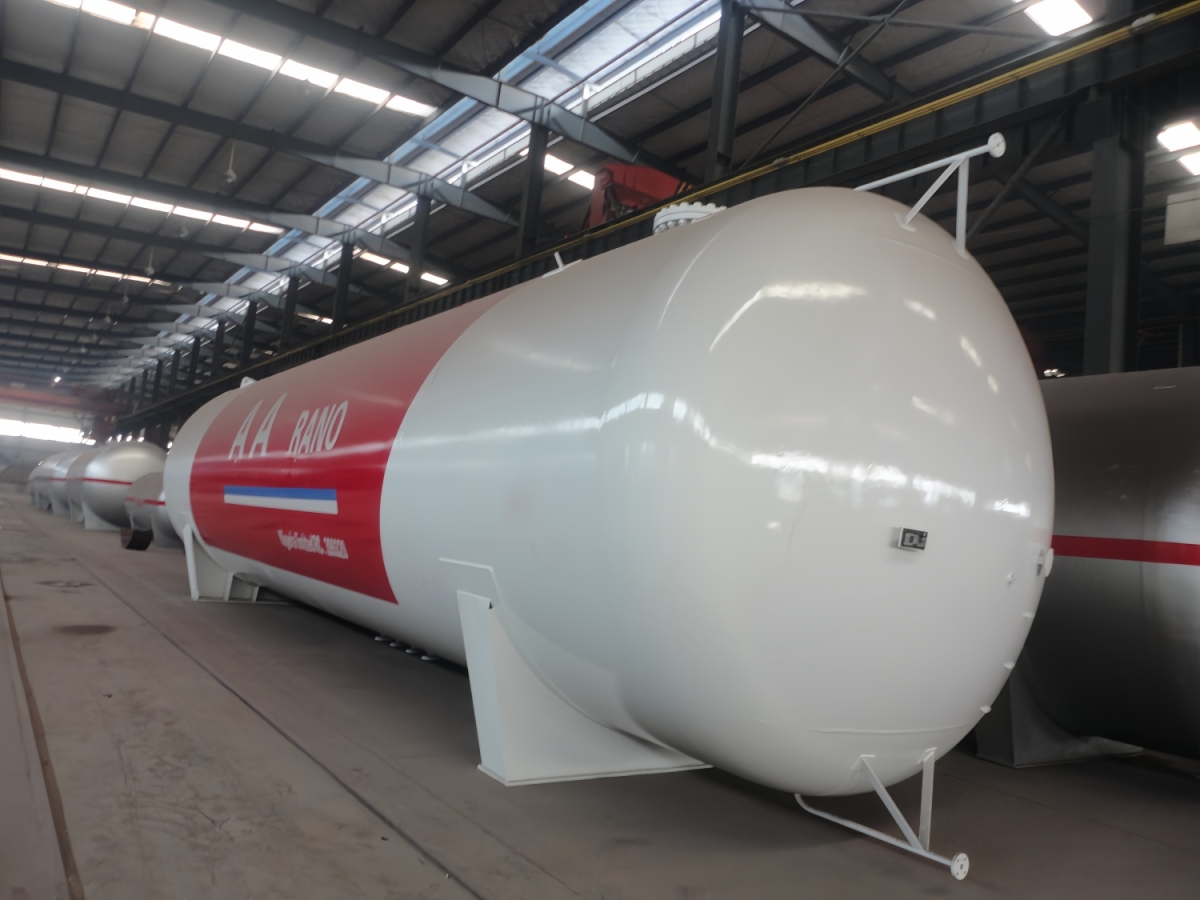

The main parameters of hot sale 120,000L surface lpg gas storage tank as below
Item | Unit | Main parameters |
Product name | LPG gas storage tank(120000L) | |
Product model | CLG3400-120 | |
Loading medium | LPG gas (propane) | |
Overall dimension(L*W*H) | mm | 13820*3436*4026 |
Tank dimension(inner diameter*thickness*length) | mm | DN3400*18*13820 |
Tank volume | m3 | 120 |
Tank thickness | mm | 18 |
End heads thickness | mm | 20 |
Curb mass | kg | 24960 |
Rated mass | Kg | 47880 |
Designed pressure | Mpa | 1.77 |
Working pressure | Mpa | ≤1.6 |
Working temperature | ℃ | ≤50 |
Hydraulic test pressure | Mpa | 2.22 |
Air tight test pressure | Mpa | 1.77 |
Tank and main Material pressure components | Q345R,16Mnlll | |
Standard | <<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
| |
Chosen assembly | Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
| |
Chengli Special Automobile Co., Ltd. could supply LPG gas trailers at home and all over the world. We can also supply ASME LPG gas truck, LPG gas trailer, LPG gas storage tank, etc.
Our company is specialized in produce LPG trailer for several years, we can produce the size of semi trailer as customs’ require. if you want to know more about our cargo semi trailer please do not hesitate to contact me. any questions about semi trailer will be highly appreciated.
We can provide other tanker trailers, like 2 axles or 3 axles, carbon steel, aluminum alloy, stainless steel material liquid tanker trailer, bulk cement tanker trailer, full trailer, tank container etc.
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% deposit T/T
Our company offer Transportation insurance for customer. To ensure customer’s prdocts arrival at the destination new and safe.
Why choose Chengli Special Automobile Co,Ltd?
a.) Fixed-point procurement of raw material manufacturer
b) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
What is the service time of our liquefied petroleum tank?
About 15 years.
